The VPP 16.3DB is a compact PC with a 12-inch touch display and IndraControl. It features a Core Duo L2400 or Core2 Duo T7400 processor, 1 GB or 2 GB of memory, 1 x 80 GB or 2 x 80 GB hard drive (RAID 1) or 32 GB solid-state drive, a DVD-ROM/DVD-RW drive, and 6 x USB 2.0 ports, 1 x VGA port, and 1 x Ethernet port. It supports Windows XP operating system.

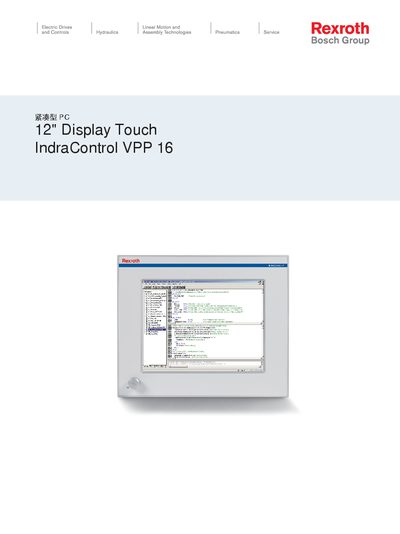

The IndraControl VPP 16 12" Display Touch is an industrial HMI panel designed for integration with Bosch Rexroth control systems. It features a 12‑inch TFT display with a resolution of 800 × 600 pixels and a color depth of 256 000 colors.
Key hardware specifications include a Core2 Duo T7400 processor at 2.16 GHz, 1 GB RAM, 80 GB HDD plus a 32 GB SSD, and Windows XP as the operating system. The unit offers multiple interfaces such as 2 Ethernet ports, 6 USB 2.0 ports, VGA output, and an external service monitor. It operates within a temperature range of 5 °C to 45 °C, tolerates storage temperatures from –20 °C to 60 °C, and is rated IP65 for ingress protection. The panel weighs 4.9 kg and complies with CE, UL, and CSA certifications.
| Display size | 12" |
|---|---|
| Display resolution | 800 x 600 pixels |
| Color depth | 256,000 colors |
| CPU | Core2 Duo T7400 2.16 GHz |
| Hard drive | 80 GB HDD |
| Solid‑state drive | 32 GB SSD |
| Operating system | Windows XP |
| Ethernet ports | 2 |
| USB ports | 6 × USB 2.0 |
| External service monitor | Yes |
| Power supply | 24 VDC |
| Ingress protection | IP65 |
| Weight | 4.9 kg |
| Operating temperature | 5 °C – 45 °C |
| Storage temperature | -20 °C – 60 °C |
| Relative humidity | 5 % – 85 % |
| Pressure rating | 80 kPa – 106 kPa |
| Certifications | CE, UL, CSA |
The display resolution is 800 × 600 pixels.
The unit includes six USB 2.0 ports.
It operates between 5 °C and 45 °C.
The unit weighs approximately 4.9 kg.
