This document introduces the fieldbus connectors and connection structures CMS from Bosch Rexroth AG, including bus modules with drivers, fieldbus protocols, module extensions, and accessories. The product features optional E/A functionality and various fieldbus protocols, suitable for pneumatic equipment.

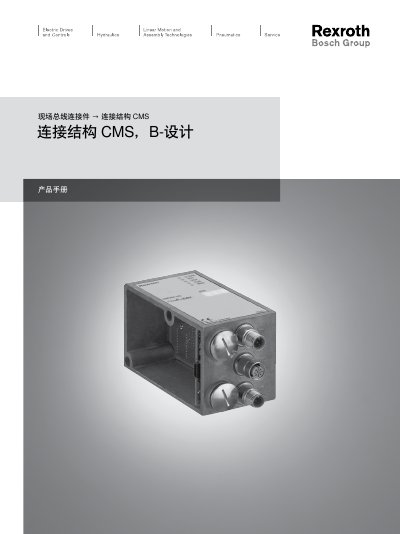

The guide describes the CMS B-Design fieldbus connector used in pneumatic applications. It details the connection structure, supported fieldbus protocols (Profibus DP, DeviceNet, CANopen, INTERBUS‑S, ETHERNET IP) and the various bus modules with E/A functionality.
Technical data such as environmental temperature range, IP protection class, operating voltage, current consumption, material composition and weight of components are listed. The document also includes part numbers for plugs, sockets, protective caps and cables, as well as reference drawings for installation. This manual is written in Chinese.
| Environmental temperature range | +0°C / +50°C |
|---|---|
| Protection rating | IP65 |
| Operating voltage | 24 V DC |
| Voltage tolerance | -15% / +20% |
| Current consumption | 0.12 A |
| Coil maximum current | 0.063 A |
| Housing material | Aluminum die‑cast |
It supports Profibus DP, DeviceNet, CANopen, INTERBUS‑S, and ETHERNET IP.
The connector can operate from +0 °C to +50 °C.
The connector has an IP65 protection rating.
The device operates at 24 V DC.
