SP1 pneumatic sensor, suitable for mounting on cylinders, operating pressure range 2 bar / 6 bar, switching point accuracy ±0.2, switching time on 12 ms switching time off 25 ms
The SP1 series pneumatic proximity sensor from Bosch Rexroth is designed for mounting on cylinders and other pneumatic components. It detects the presence of objects using an optical display and operates with dry, oil‑free compressed air.

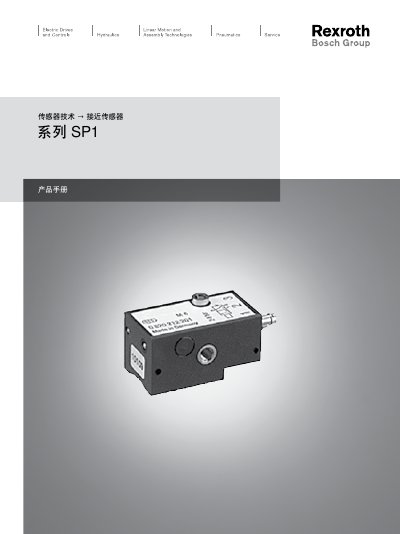

The manual provides technical data such as flow rate, pressure range, switching times, and environmental limits, as well as details on mounting positions, compatible accessories, and material construction. Contact information for Bosch Rexroth offices worldwide is also included. This manual is written in Chinese.
| Flow rate (Qn) | 40 l/min |
|---|---|
| Installation position | Any |
| Operating temperature range | -15°C to +60°C |
| Medium | Compressed air |
| Maximum particle size | 40 µm |
| Oil content in air | 0 mg/m³ (dry) / 0.1 mg/m³ (max) |
| Working pressure range | 2 bar to 6 bar |
| Switch point accuracy | ±0.2 |
| Switching time (on) | 12 ms |
| Switching time (off) | 25 ms |
The sensor is rated for a working pressure range of 2 bar to 6 bar.
The on‑switching time is 12 ms.
Only dry, oil‑free compressed air may be used.
Particles up to 40 µm are permitted.
