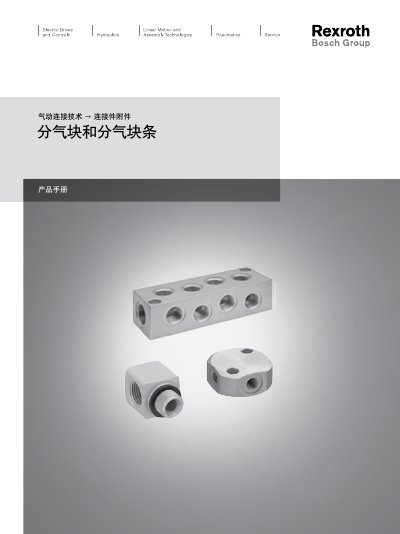

Pneumatics → Connection Accessories Split-Air Blocks and Split-Air Bars Product Manual, introduces the features and characteristics of right angle threaded connectors, corner threaded connectors, cross threaded connectors, multi-way split-air blocks, and complementary products, split-air blocks and split-air bars.
The handbook lists a range of pneumatic connection components, including right‑angle, bent‑angle and cross‑threaded fittings as well as multi‑way manifold blocks. For each part it provides material codes, material type (brass or aluminum), working pressure range, and operating temperature limits.
Technical data tables give supply quantities, pressure ratings (0‑16 bar) and temperature ranges (‑10 °C to +70 °C). The document ends with Bosch Rexroth contact details and a disclaimer about product wear and suitability. This manual is written in Chinese.
Ten pieces are supplied per order for part 1823391047.
