This document introduces the features and characteristics of the FL IBS SC/I-T Ethernet gateway, 4th generation, produced by PHOENIX CONTACT GmbH & Co. KG. The product has Ethernet and INTERBUS interfaces, supports IEEE 802.3, TCP/IP protocol, BootP and TFTP protocols, and integrates management agent and SNMP protocol with integrated web server functionality. The product supports Netscape Communicator4.5 and higher versions of browsers and Internet Explorer4.01 and higher versions. It has status and diagnostic display functions, supports 512 devices, 256 words of process data, and 62 devices with parameter channel (PCP). The product has a power supply voltage of 24 V DC, weighs 240 g, dimensions of 45 mm x 99 mm x 117 mm, protection class IP20, operating temperature range of 0 °C to 55 °C, and humidity range of 30% to 95%. The product complies with EMC guidelines and has passed shock tests.

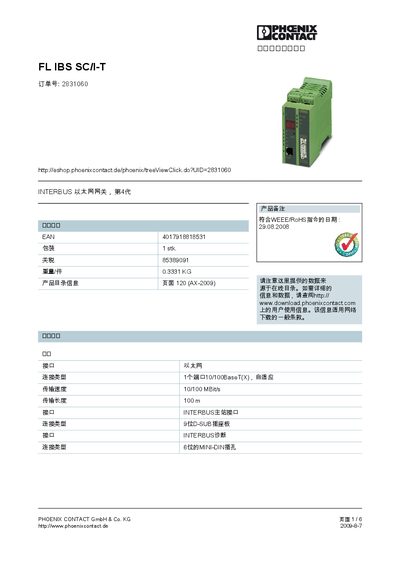

The FL IBS SC/I-T is a 4th‑generation INTERBUS Ethernet gateway from Phoenix Contact. It provides a single 10/100 Base‑T Ethernet port and INTERBUS master and diagnostic interfaces for integration into industrial networks.
The manual lists electrical, environmental and EMC data, as well as accessories such as RJ45 plugs, CAT5 cables and configuration software. Certification information and test results are also included for compliance verification. This manual is written in Chinese.
| Ethernet interface | 1 port 10/100BaseT, auto‑adaptive |
|---|---|
| Transmission speed | 10/100 Mbits |
| Maximum cable length | 100 m |
| Power supply voltage | 24 V DC (via COMBICON) |
| Typical current consumption | 200 mA |
| Weight | 0.3331 kg |
| Operating temperature | -20 °C … 70 °C |
| Storage temperature | -20 °C … 70 °C |
| EMC compliance | EN 61000‑6‑2:2005 |
| Number of devices supported | 512 (256 remote bus devices/segments) |
It supports 10 Mbit/s and 100 Mbit/s Ethernet speeds.
The device operates from a 24 V DC supply, connected via COMBICON.
Up to 512 devices can be connected, including 256 remote‑bus devices or segments.
