SEARAY Slim is a solution armed with the benefi ts of the standard SEARAY family but with a width similar to 2-row mezzanine products. The design meets system needs as a highly compact solution but with speed capabilities of 12.5 Gbps, a level of performance most other 2-row products cannot achieve today.

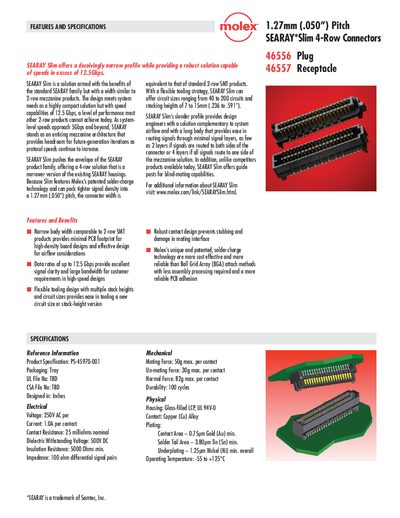

The SEARAY*Slim 4‑Row connector offers a narrow 1.27 mm (.050") pitch while supporting data rates up to 12.5 Gbps, making it suitable for high‑speed mezzanine applications. Its compact profile and flexible tooling options allow for a wide range of circuit sizes and stack heights.
The document lists electrical specs such as 250 V AC per contact, 1.0 A per contact, 25 mΩ contact resistance, and a dielectric withstanding voltage of 500 V DC. Mechanical details include a mating force of 50 g max per contact, durability of 100 cycles, and an operating temperature range of –55 °C to +125 °C. Ordering information and part numbers for plugs and receptacles are also provided.
| Pitch | 1.27 mm (.050") |
|---|---|
| Maximum Data Rate | 12.5 Gbps |
| Voltage | 250 V AC per contact |
| Current | 1.0 A per contact |
| Contact Resistance | 25 mΩ nominal |
| Dielectric Withstanding Voltage | 500 V DC |
| Insulation Resistance | ≥ 5000 Ω |
| Impedance | 100 Ω differential signal pairs |
| Mating Force | 50 g max per contact |
| Un‑mating Force | 30 g max per contact |
| Normal Force | 82 g max per contact |
| Durability | 100 cycles |
| Operating Temperature | -55 °C to +125 °C |
| Contact Plating | 0.75 µm Gold min |
| Solder Tail Plating | 3.80 µm Tin min |
| Underplating | 1.25 µm Nickel min |
The connector supports data rates of up to 12.5 Gbps.
The connector has a 1.27 mm (.050") pitch.
Mating force is 50 g max per contact, un‑mating force 30 g max, and normal force 82 g max per contact.
