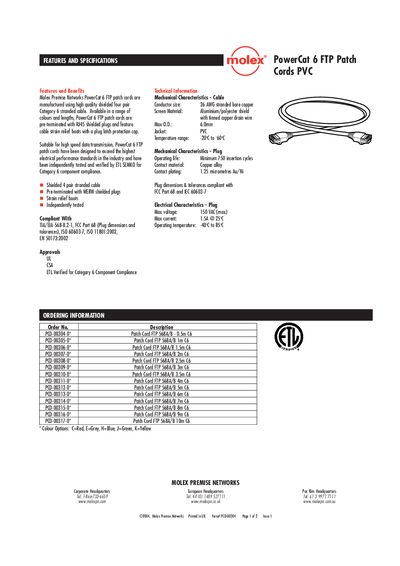

Molex Premise Networks PowerCat 6 FTP patch cords are manufactured using high quality shielded four pair Category 6 stranded cable. Available in a range of colours and lengths, PowerCat 6 FTP patch cords are pre-terminated with RJ45 shielded plugs and feature cable strain relief boots with a plug latch protection cap. Suitable for high speed data transmission, PowerCat 6 FTP patch cords have been designed to exceed the highest electrical performance standards in the industry and have been independently tested and verified by ETL SEMKO for Category 6 component compliance.
The PowerCat 6 FTP PVC patch cords from Molex Premise Networks are high‑quality shielded four‑pair Category 6 cables. They are pre‑terminated with shielded RJ45 plugs and feature strain‑relief boots with plug‑latch protection.
Technical data includes mechanical characteristics (26 AWG stranded copper conductors, aluminium/polyester shield, 6.0 mm outer diameter, PYC jacket), electrical ratings (150 VAC max, 1.54 A at 25 °C, operating temperature –40 °C to 85 °C) and compliance with TIA/EIA‑568‑B.2‑1, FCC Part 68 and IEC 60603‑7 standards. Ordering codes cover lengths from 0.5 m to 10 m with colour options.
| Screen material | Aluminium/polyester shield with finned copper drain wire |
|---|---|
| Maximum outer diameter | 6.0 mm |
| Jacket material | PYC |
| Cable temperature range | -20 °C to 60 °C |
| Plug operating life | Minimum 750 insertion cycles |
| Contact plating | 1.25 µm Au/Ni |
| Maximum voltage | 150 VAC |
| Maximum current | 1.54 A @ 25 °C |
| Operating temperature range (plug) | -40 °C to 85 °C |
It is UL, GSA and ETL verified for Category 6 component compliance.
The patch cord is rated for a maximum voltage of 150 VAC.
The plug can operate from –40 °C to 85 °C.
