PowerCat 6 Category 6 DataGate Plus Jacks use a patented spring-loaded dust cover technology that prevents dust and debris.
The PowerCat 6 DataGate Plus socket is a Category‑6 compliant RJ‑45 connector designed for reliable, high‑density networking. It features a spring‑supported dust‑cover, patented IDC V‑shaped contacts, and a tapered IDC shank that speeds termination while securing the cable.

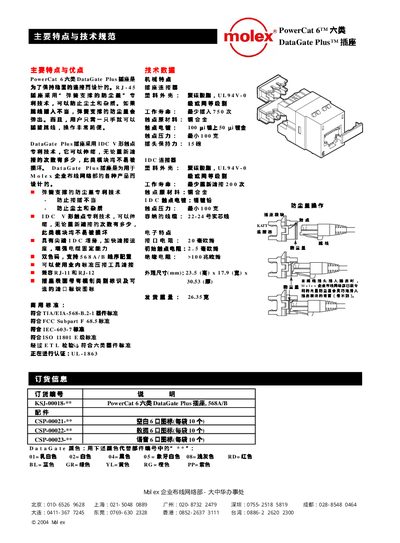

The leaflet provides technical specifications such as insertion life, contact materials, electrical resistance, and mechanical dimensions, as well as ordering codes and color‑coding for the various port configurations. It also lists compliance with TIA/EIA‑568‑B.2‑1, FCC, IEC, and ISO standards. This manual is written in Chinese.
| Minimum insertion cycles | 750 |
|---|---|
| Minimum re‑termination cycles | 200 |
| Contact material | Copper alloy |
| Nickel plating thickness | 100 µin |
| Interface resistance | 20 mΩ |
| Insulation resistance | >100 MΩ |
The socket is rated for a minimum of 750 insertion cycles.
It can be re‑terminated at least 200 times without damage.
