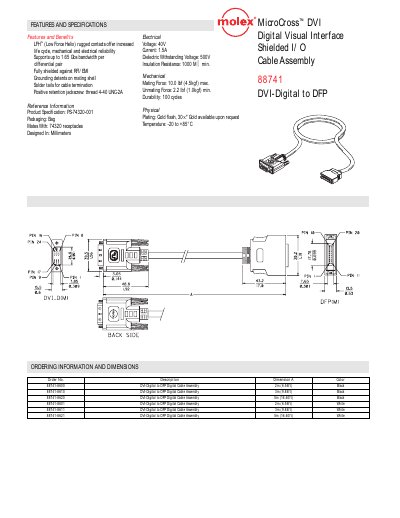

MicroCross™ DVI Digital Visual Interface Shielded I/O Cable Assembly 88741 DVI-Digital to DFP Features and Benefits: LFH™ (Low Force Helix) rugged contacts offer increased life cycle, mechanical and electrical reliability; Supports up to 1.65 Gbs bandwidth per differential pair; Fully shielded against RFI/EMI; Grounding detents on mating shell; Solder tails for cable termination; Positive retention jackscrew: thread 4-40 UNC-2A
The 88741 cable assembly converts DVI digital signals to DFP with LFH™ low‑force helix contacts for high reliability. It supports up to 1.65 Gbps per differential pair, is fully shielded against RFI/EMI, and includes grounding detents, solder tails, and a positive‑retention 4‑40 UNC‑2A jackscrew.
Ordering options include 2 m, 3 m, and 5 m lengths in black or white. Electrical ratings are 40 V, 1.5 A, 500 V dielectric withstand, and ≥1000 MΩ insulation resistance. Mechanical mating force is 10.0 lbf max, unmating 2.2 lbf min, with a durability of 100 cycles. The cable is gold‑flash plated (30 µm) and operates from –20 °C to +85 °C.
| Electrical Voltage | 40 V |
|---|---|
| Current | 1.5 A |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥1000 MΩ |
| Mechanical Mating Force (max) | 10.0 lbf (4.5 kgf) |
| Mechanical Unmating Force (min) | 2.2 lbf (1.0 kgf) |
| Durability | 100 cycles |
| Physical Plating | Gold flash, 30 µm |
| Operating Temperature | -20 °C to +85 °C |
The cable supports up to 1.65 Gbps bandwidth per differential pair.
The cable is rated for 40 V, 1.5 A, with a dielectric withstand voltage of 500 V and insulation resistance of at least 1000 MΩ.
