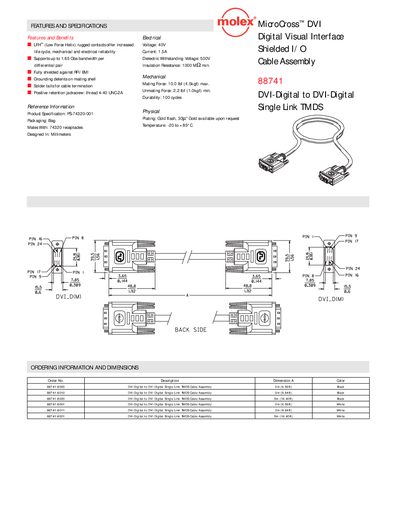

MicroCross™ DVI Digital Visual Interface Shielded I/O Cable Assembly 88741 DVI-Digital to DVI-Digital Single Link TMDS Features: LFH™ (Low Force Helix) rugged contacts offer increased life cycle, mechanical and electrical reliability. Supports up to 1.65 Gbs bandwidth per differential pair. Fully shielded against RFI/EMI. Grounding detents on mating shell. Solder tails for cable termination. Positive retention jackscrew: thread 4-40 UNC-2A.
The Molex 88741 DVI Digital Visual Interface Shielded I/O Cable Assembly features LFH™ rugged contacts for increased life cycle, mechanical and electrical reliability, and supports up to 1.65 Gbps bandwidth per differential pair. It is fully shielded against RFI/EMI, includes grounding detents on the mating shell, and uses a positive retention jackscrew (thread 4‑40 UNG2A) for secure connection.
Ordering information includes part numbers for 2 m, 3 m, and 5 m lengths in black or white (e.g., 88741‑8000, 88741‑8010, 88741‑8020). The cable is designed in millimeters, packaged in a bag, and mates with 74320 receptacles. Electrical specifications include 40 V rating, 1.54 A current, 500 V dielectric withstand, and 1000 MΩ insulation resistance. Mechanical specs list a mating force of 10 lbf max, unmating force of 2.2 lbf min, and durability of 100 cycles. The operating temperature range is –20 °C to +85 °C.
| Bandwidth | 1.65 Gbps per differential pair |
|---|---|
| Voltage rating | 40 V |
| Current rating | 1.54 A |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | 1000 MΩ min |
| Mating Force | 10 lbf (4.5 kgf) max |
| Unmating Force | 2.2 lbf (1.0 kgf) min |
| Durability | 100 cycles |
| Operating Temperature | -20 °C to +85 °C |
It supports up to 1.65 Gbps bandwidth per differential pair.
The cable is rated for 40 V and a current of 1.54 A.
The cable can operate from –20 °C up to +85 °C.
2 m black: 88741‑8000, 2 m white: 88741‑8001; 3 m black: 88741‑8010, 3 m white: 88741‑8011; 5 m black: 88741‑8020, 5 m white: 88741‑8021.
