This document provides information about the MOLEX MicroBlade™ 2mm connector, including the crimp terminals, wire sizes, prices, and tools. The connector is available in vertical and right-angle configurations, suitable for wire-to-board connections. It is made of glass-filled 6/6 nylon material and has a temperature range of -20°C to +85°C.
The MicroBlade 2mm connector series from Molex provides a compact 0.079" (2.00 mm) pitch solution for consumer and small data devices. It offers a low‑profile, polarized design with secure locking and good solder joint reliability.

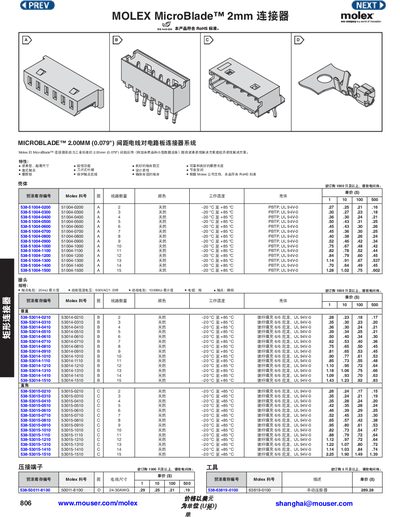

The leaflet includes detailed part numbers, material specifications, operating temperature range of –20 °C to +85 °C, insulation resistance, dielectric strength, and RoHS compliance. Ordering information and recommended crimp tools are also provided. This manual is written in Chinese.
| Pitch | 2.00 mm (0.079 in) |
|---|---|
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 500 VAC / 1 min |
| RoHS Compliance | Yes |
The MicroBlade connector has a 2.00 mm (0.079 in) pitch.
Yes, the connector complies with RoHS standards.
The minimum insulation resistance is 1000 MΩ.
