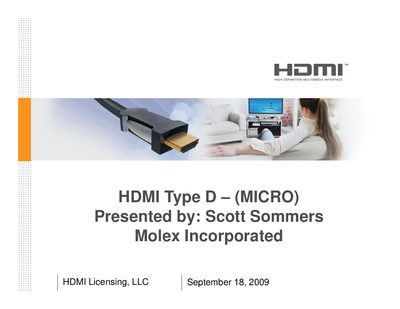

This document provides information about HDMI Type D (Micro) and Molex Incorporated. Molex is the second largest connector manufacturer globally, with a wide range of products and a strong global presence. Micro HDMI is a connector designed for smartphones and digital cameras, enabling high-resolution viewing and downloading of HD content. The document also discusses the market need for Micro HDMI, Molex's solution, and provides preliminary mechanical and electrical test summaries.
The document provides an overview of Molex's Micro HDMI (Type D) connector, describing its role in mobile devices and its compliance with HDMI 1.3/1.4 specifications. It includes market requirements, design details, and summaries of mechanical and electrical testing.
Key specifications such as the 0.4 mm pitch, 19‑pin dual‑row layout, and maximum connector dimensions are listed, along with durability data and test results for signal integrity and crosstalk. The connector is positioned as the smallest commoditized I/O solution in the HDMI family. This manual is written in Chinese.
| Pitch | 0.4 mm |
|---|---|
| Number of Contacts | 19 |
| Durability Cycle Life | 5000 min |
| Maximum Width | 6.4 mm |
| Maximum Height | 2.9 mm |
| Maximum Depth | 7.3 mm |
The connector uses a 0.4 mm pitch between contacts.
It has 19 contacts arranged in two rows.
The connector is rated for 5000 minutes of cycle life.
Maximum width 6.4 mm, height 2.9 mm, and depth 7.3 mm.
