SlimStack series products are the industry's broadest range of micro SMT stacking connectors, which can save space for applications such as mobile phones, digital cameras, PDAs and other mobile devices. The latest additions to our SlimStack family include stack heights as low as 0.95mm (0.037 inches) and space-saving J-Bend SMT tails that save up to 35 percent PCB space. Contact your Molex representative to see how SlimStack can help you save valuable PCB real-estate.

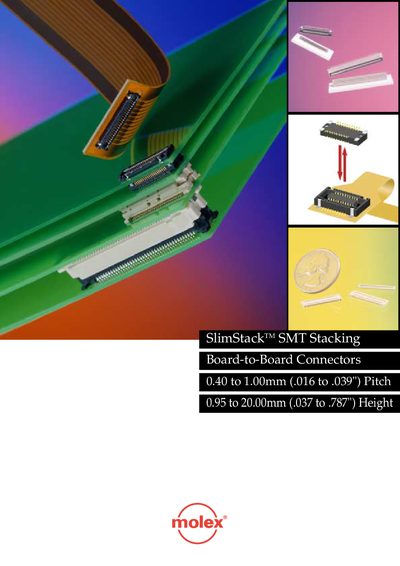

The SlimStack™ SMT series provides a broad range of board‑to‑board connectors for mobile devices, servers, and high‑speed applications. Available in 0.40, 0.50, 0.635 and 1.00 mm pitches, the family covers stack heights from 0.95 mm to 20.00 mm and circuit counts from 7 to 240.
The catalog includes selection guides, voltage/current ratings, high‑speed capabilities up to 3 GHz for the 0.635 mm pitch, and packaging options. Contact information for Molex worldwide offices is provided at the end of the document.
| Pitch range | 0.40 mm to 1.00 mm (0.016"‑0.039") |
|---|---|
| Stack height range | 0.95 mm to 20.00 mm (0.037"‑0.787") |
| Circuit size range | 7 to 240 circuits |
| High‑speed capability (0.635 mm pitch) | Up to 3 GHz for 50 Ω and 100 Ω systems |
| Typical voltage/current rating (example series) | 50 V / 0.3 A |
SlimStack connectors are offered in 0.40 mm, 0.50 mm, 0.635 mm, and 1.00 mm pitches.
The family provides stack heights up to 20.00 mm (0.787 in).
The 0.635 mm pitch version supports frequencies up to 3 GHz for both 50 Ω and 100 Ω applications.
SlimStack connectors can accommodate between 7 and 240 circuits.
