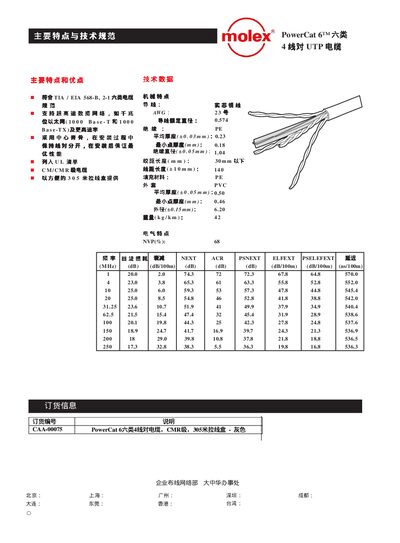

The Molex PowerCat 6 UTP cable product leaflet provides key features, technical specifications, and ordering information for the 4‑pair, CMR‑rated cable.
The PowerCat 6 is a Category‑6, 4‑pair UTP cable that meets TIA/EIA 568‑B standards and is suitable for high‑speed Ethernet networks such as 1000Base‑T. It uses solid copper conductors, PE insulation and a PVC outer jacket, and is rated CMR for riser applications.
The leaflet lists mechanical and electrical characteristics, including conductor diameter, outer diameter, weight per kilometer, and attenuation values. Ordering information provides part numbers for different colors and the standard 305 m roll length. This manual is written in Chinese.
| Number of pairs | 4 |
|---|---|
| Conductor material | Solid copper |
| Conductor diameter | 0.574 mm |
| Outer diameter | 6.20 mm |
| Weight | 42 kg/km |
| Standard compliance | TIA/EIA 568‑B |
| Attenuation at 100 MHz | 20.1 dB/100 m |
It complies with the TIA/EIA 568‑B standard.
The cable contains four twisted pairs.
