This document introduces the connector products from MOLEX, including the 5264-N series and the 5276-NA series. These connectors feature ultra-thin design, friction lock, and molded-in strain relief. They are suitable for different circuit quantities and sizes. The connector shells are made of 6/6 nylon material and comply with RoHS standards.

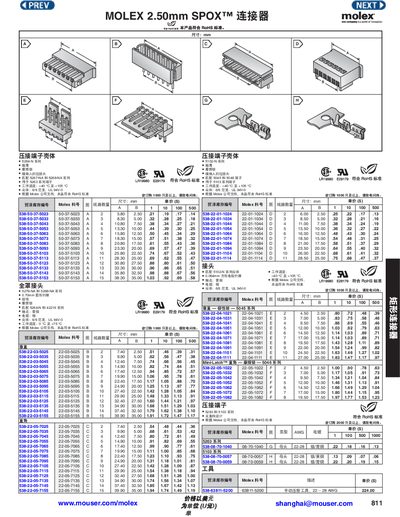

The document provides a detailed listing of Molex SPOX™ 2.50 mm connector part numbers, their mechanical dimensions, and pricing tiers for various order quantities. It also includes material, finish, temperature range and compliance information for each series.
The data is intended for engineers, purchasing agents and distributors who need to select the appropriate connector variant for their designs and to obtain accurate cost estimates. This manual is written in Chinese.
| Pitch | 2.50 mm |
|---|---|
| Housing Material | 6/6 Nylon, UL 94V-0 |
| Operating Temperature | –40 °C to +105 °C |
| RoHS Compliance | Yes |
The connector operates from –40 °C up to +105 °C.
The housing is made of 6/6 Nylon and meets UL 94V-0 flame‑retardant standards.
Yes, the connector complies with RoHS standards.
