Mini-Fit™ Test Plug is a high-performance test plug that can meet the durability requirements in testing environments.
Molex introduces a line of Mini-Fit™ Test Plugs with spring‑loaded male contacts that protect female receptacles during repeated continuity testing. The plugs are rated for thousands of mating cycles, use gold‑plated beryllium‑copper contacts, and are polarized to prevent mismating.

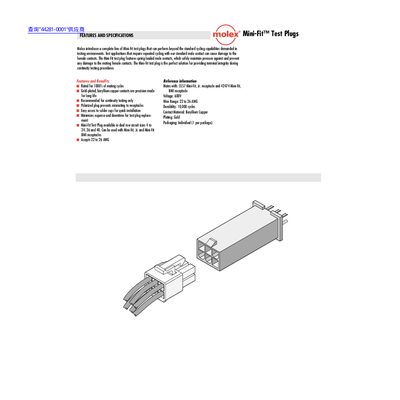

The leaflet provides ordering numbers for various circuit sizes, mating information with Mini‑Fit, Jr. and Mini‑Fit BMI receptacles, and reference data such as voltage rating, wire range, durability, contact material, plating, and packaging.
| Mating cycles rating | 1000's |
|---|---|
| Voltage rating | 600 V |
| Wire range | 22 to 26 AWG |
| Durability | 10,000 cycles |
| Contact material | Beryllium Copper |
| Plating | Gold |
| Packaging | Individual (1 per package) |
The Mini-Fit Test Plug is rated for 600 V.
It supports wire sizes from 22 to 26 AWG.
The plug is rated for up to 10,000 mating cycles.
The contacts are made of beryllium copper and are gold‑plated.
