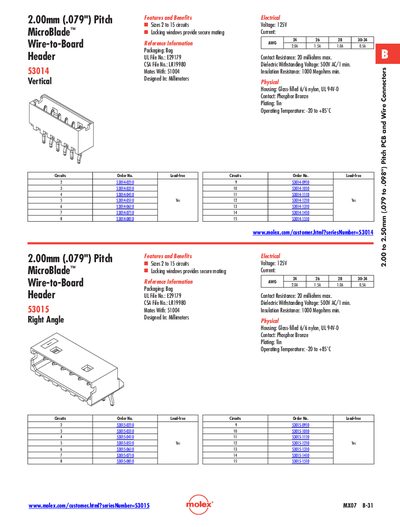

Molex MicroBlade™ wire-to-board connectors 53014 and 53015 offer 2.00mm pitch with 2 to 15 circuits. They feature locking windows for a secure mating.
The 53014 MicroBlade wire‑to‑board header is a vertical, 2.00 mm (0.079") pitch connector designed for secure mating with locking windows. It supports 2 to 15 circuits and is built with a glass‑filled nylon housing, phosphor‑bronze contacts, and a tin plating.
Key electrical characteristics include a 125 V rating, 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and a dielectric withstanding voltage of 500 VAC for 1 minute. The header operates reliably from –20 °C to +85 °C and is supplied in bag packaging.
| Pitch | 2.00 mm (0.079") |
|---|---|
| Number of Circuits | 2 to 15 |
| Voltage Rating | 125 V |
| Contact Resistance | 20 mΩ max. |
| Insulation Resistance | 1000 MΩ min. |
| Dielectric Withstanding Voltage | 500 VAC for 1 min |
| Operating Temperature | -20 °C to +85 °C |
| Housing Material | Glass‑filled 6/6 nylon, UL 94‑0 |
| Contact Material | Phosphor Bronze |
| Plating | Tin |
The header has a 2.00 mm (0.079") pitch.
It supports between 2 and 15 circuits.
The header can operate from –20 °C up to +85 °C.
Contact resistance is limited to 20 mΩ maximum.
