This product is a Belden 2226a type twisted pair and coaxial cable combination product, suitable for HDTV, DBS, CATV, CCTV, multimedia, voice, video, data, high-speed Internet, networked computing, distributed video, distributed audio, security monitoring, energy monitoring and other application scenarios.

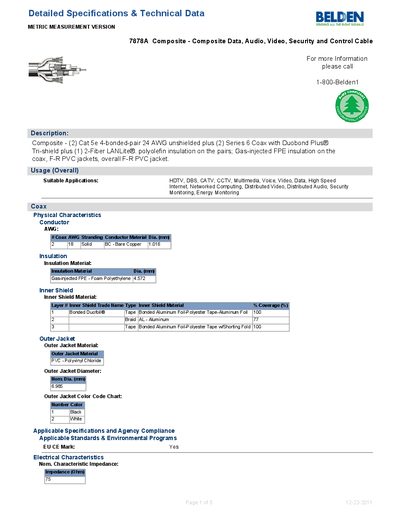

The 7878A Composite cable combines two Cat5e‑rated twisted‑pair 24 AWG unshielded conductors with two Series 6 coaxial pairs in a single polyolefin‑insulated, F‑R PVC‑jacketed cable. It is intended for HDTV, DBS, CATV, CCTV, multimedia, voice, data, high‑speed Internet, networked computing, distributed video/audio, security and energy monitoring applications.
Key specifications include a 350 V RMS UL‑rated operating voltage, bulk weight of 235.136 kg/km, minimum bend radius of 165.1 mm, overall nominal diameter of 16.129 mm, and compliance with EU CE, RoHS, WEEE, ANSI/TIA‑EIA‑568‑B.2 Category 5e, and UL1666 flame test standards.
| Conductor AWG (Coax) | 2 18 |
|---|---|
| Nominal Inductance | 0.318 |
| Capacitance Conductor to Shield | 53.152 |
| Maximum Operating Voltage (UL) | 350 V RMS |
| Bulk Cable Weight | 235.136 kg/km |
| Minimum Bend Radius (Install) | 165.1 mm |
| Overall Nominal Diameter | 16.129 mm |
It is suitable for HDTV, DBS, CATV, CCTV, multimedia, voice, video, data, high‑speed Internet, networked computing, distributed video, distributed audio, security monitoring, and energy monitoring.
The cable is rated for a maximum operating voltage of 350 V RMS according to UL.
