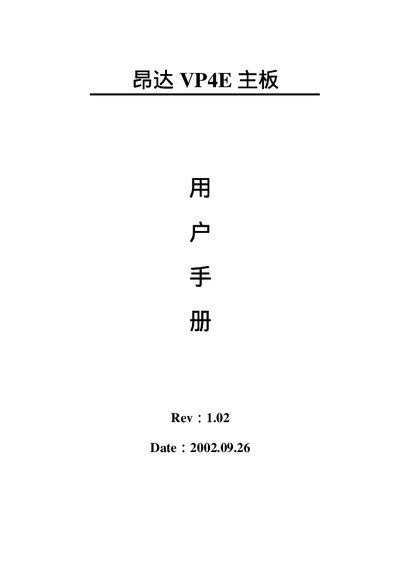

Aonda VP4E motherboard user manual, introduces the motherboard's packaging instructions, installation instructions, operating instructions, troubleshooting and other content.
This manual covers the ONDA VP4E motherboard, describing its packaging contents, system overview, board diagram, I/O interfaces, installation steps, BIOS configuration, and driver installation procedures. It also includes regulatory compliance information and a feedback form.
The board features a Socket‑478 CPU slot, VIA P4X266E northbridge and VT8233A southbridge, three DDR DIMM slots, multiple expansion slots, integrated AC97 audio, and six USB ports. Detailed diagrams and tables help users set up and maintain the system. This manual is written in Chinese.
| CPU socket | Socket‑478 for Intel P4 series |
|---|---|
| Chipset | VIA P4X266E northbridge, VIA VT8233A southbridge |
| Form factor | ATX, 305 mm × 218 mm |
It uses a Socket‑478 processor slot for Intel P4 series CPUs.
