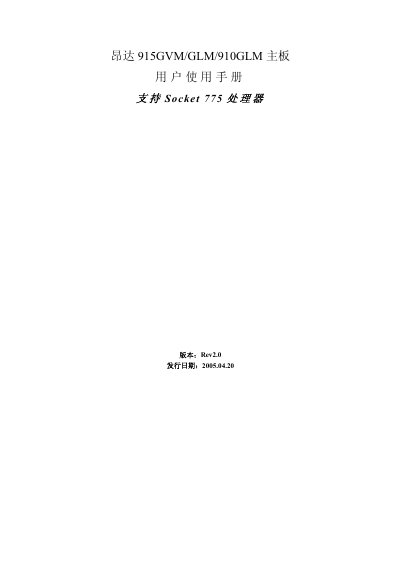

Aonda 915GVM/GLM/910GLM motherboard user manual, which introduces the packaging instructions, system motherboard introduction, motherboard bitmap and I/O interface, motherboard installation and settings, BIOS settings and other contents.
This manual covers the packaging contents, an overview of the 915GVM/GLM/910GLM series motherboards, and detailed diagrams of the board layout and I/O connectors. It explains how to install the CPU, memory, storage devices, and expansion cards, and provides step‑by‑step guidance for mounting the board in a chassis.
Further sections describe BIOS configuration options, driver installation procedures, and audio system setup, including AC97 v2.2 sound configuration and multi‑channel speaker wiring. Contact information for technical support is provided at the end. This manual is written in Chinese.
| Form factor | M‑ATX, 244 mm × 231 mm |
|---|---|
| CPU socket | Socket 775 (LGA775) |
| Chipset | North Bridge Intel 915GV/GL/910GL, South Bridge Intel 82801FB |
| Memory slots | 2 × 184‑pin DDR, DDR333/400 MHz, up to 4 GB |
| Maximum memory | 4 GB DDR |
| Storage interfaces | 1 IDE channel, 4 Serial ATA ports, Ultra DMA 33/66/100 |
| Audio | AC97 v2.2, 6‑channel |
| LAN | Optional 10/100 M Ethernet |
| USB ports | 8 × USB 2.0 |
It supports Socket 775 (LGA775) Intel processors.
The board has two 184‑pin DDR slots supporting up to 4 GB of DDR memory.
Eight USB 2.0 ports are available.
It follows the AC97 v2.2 audio specification.
