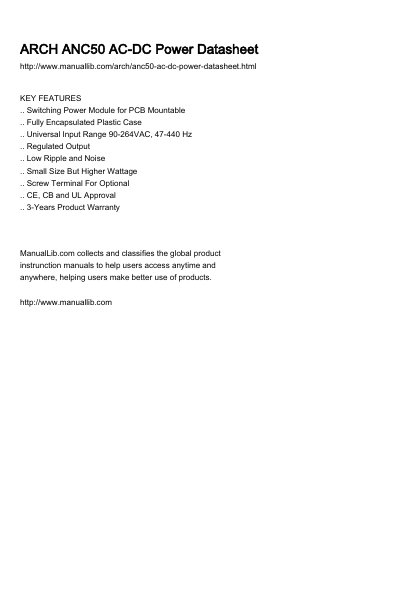

KEY FEATURES .. Switching Power Module for PCB Mountable .. Fully Encapsulated Plastic Case .. Universal Input Range 90-264VAC, 47-440 Hz .. Regulated Output .. Low Ripple and Noise .. Small Size But Higher Wattage .. Screw Terminal For Optional .. CE, CB and UL Approval .. 3-Years Product Warranty
This document is a technical datasheet for the ARCH ANC50 Series of AC-DC power modules. It details five single-output models (ANC50-5S through ANC50-48S) with output voltages ranging from 5V to 48V and maximum wattage up to 50W. Key features include a universal input range of 90-264 VAC, regulated outputs with low ripple and noise, and protection against over-power, over-voltage, and short circuits.
| Max Output Wattage | 50W (for ANC50-12S/15S/24S/48S) |
|---|---|
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Operating Temperature | -40°C…+70°C (with derating) |
| Dimensions | 2.91 x 2.13 x 0.87 Inches (74.0 x 54.0 x 22.0 mm) |
| Safety Approvals | CE, UL/cUL |
The module supports a universal input range of 90-264 VAC.
Yes, it includes short circuit protection using a hiccup mode with automatic recovery.
