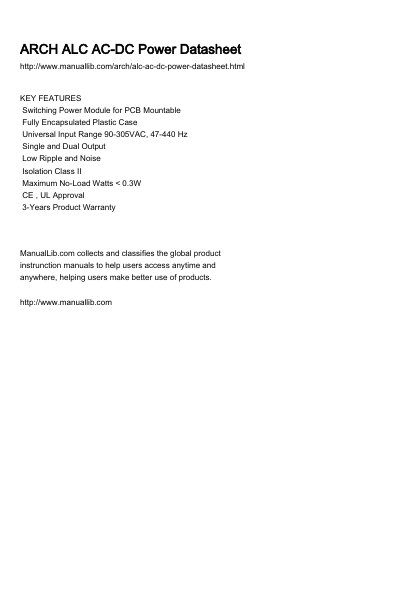

KEY FEATURES Switching Power Module for PCB Mountable Fully Encapsulated Plastic Case Universal Input Range 90-305VAC, 47-440 Hz Single and Dual Output Low Ripple and Noise Isolation Class II Maximum No-Load Watts < 0.3W CE , UL Approval 3-Years Product Warranty
This document is a datasheet for the ARCH ALC Series AC-DC Power Modules, which are switching power modules designed for PCB mounting. The modules feature a fully encapsulated plastic case and offer a universal input range of 90-305VAC or 120-430VDC at frequencies between 47-440 Hz.
| Max Output Wattage | 8 Watts |
|---|---|
| Input Voltage Range | 90-305 VAC or 120-430 VDC |
| Operating Temperature | -40°C…+70°C |
| Isolation Input-Output | 3000V |
| MTBF | >350,000 h |
| Dimensions | 37.5 x 28.0 x 27.4 mm |
The maximum no-load power consumption is less than 0.3W.
The module has CE, UL, and cUL approvals.
A 2 A slow blow type fuse is recommended.
