This product is an LED power from ARCH with IP66/67 design. It supports 90-305VAC input voltage and the maximum output power is 80W.

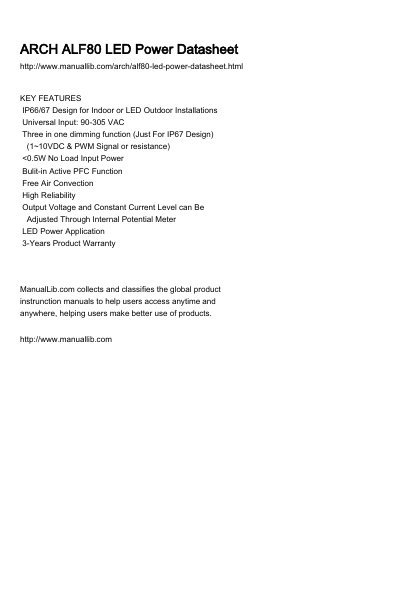

This document is a datasheet for the ARCH ALF80 Series LED Power supply. It details key features such as an IP66/67 design suitable for indoor or outdoor installations, universal input voltage ranging from 90-305 VAC, and a built-in active PFC function. The unit supports three-in-one dimming functions for IP67 designs, including 1~10VDC, PWM signals, or resistance control.
| Max Output Wattage | 80W |
|---|---|
| Input Voltage | 90-305 VAC or 127-430 VDC |
| Input Frequency | 47-63 Hz |
| Protection Rating | IP66/67 |
| Power Factor | >0.97 (115 VAC) |
| Operating Temperature | -40°C...+70°C |
| Warranty | 3 Years |
The input voltage range is 90-305 VAC or 127-430 VDC.
Yes, it supports three-in-one dimming functions (1~10VDC & PWM Signal or resistance) for IP67 designs.
The maximum output wattage is 80W.
