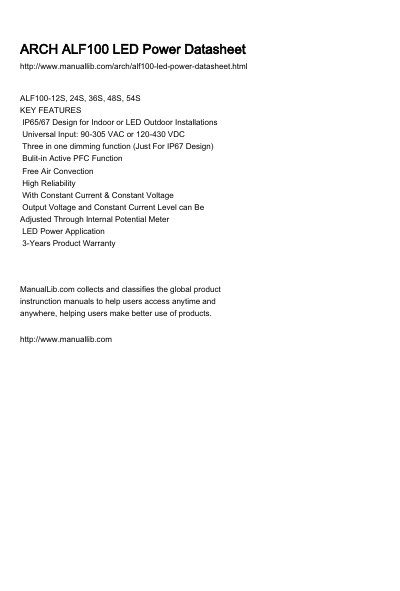

The data sheet introduces the features, specifications, etc. of ARCH ALF100 LED power.
This document provides a technical overview of the ARCH ALF100 Series LED Power Supply. It details key features such as IP65/67 protection ratings, universal input voltage support (90-305 VAC or 120-430 VDC), and built-in Active PFC functions.
The datasheet includes comprehensive electrical specifications for various models within the series, including output voltages ranging from 12V to 700V. It also covers dimming operation methods (3-in-1 dimming via voltage or PWM signal) and provides efficiency curves versus load.
| Max Output Wattage | 100W |
|---|---|
| Input Voltage Range | 90-305 VAC or 120-430 VDC |
| Power Factor (PF) | >0.97 at Full Load (115VAC) |
| Operating Temperature | -30°C...+70°C |
| Efficiency (typ.) | 89% to 91.5% |
The product comes with a 3-year warranty.
Yes, it features a built-in 3-in-1 dimming function for IP67 designs using voltage or PWM signals.
The unit is approved under UL 8750, EN61347-1:2008, and EN61347-2-13:2006.
