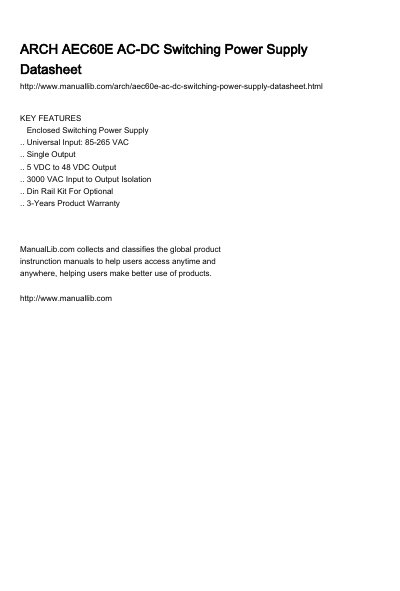

KEY FEATURES Enclosed Switching Power Supply .. Universal Input: 85-265 VAC .. Single Output .. 5 VDC to 48 VDC Output .. 3000 VAC Input to Output Isolation .. Din Rail Kit For Optional .. 3-Years Product Warranty
This document provides technical specifications for the ARCH AES60E series of enclosed AC-DC switching power supplies. The series offers single output voltages ranging from 5VDC to 48VDC with a maximum output wattage of 60W per model. Key features include universal input voltage support (85-265 VAC), 3000VAC input-to-output isolation, and a 3-year product warranty.
| Max Output Wattage | 50W to 60W |
|---|---|
| Input Voltage | 85-265 VAC or 100-370 VDC |
| Input Current (Full load) | 2 Amax. (115 VAC)/ 1 A max. (230 VAC) |
| Input-Output Isolation | 3000V |
| Operating Temperature | -40°C...+70°C |
| Dimensions | 105.0 x 58.0 x 38.1 mm |
The product comes with a 3-year warranty.
The ripple is less than 0.2% of Vout plus a maximum of 40mV peak-to-peak.
Yes, it features auto recovery short circuit protection.
