KEY FEATURES Switching Power Module for PCB Mountable Fully Encapsulated Plastic Case Universal Input Range 90-264VAC, 47-440 Hz Regulated Output and Low Ripple and Low Noise Isolation Class II Low Standby <0.5W Small Size as AFC 10Watt with 20Watt Higher Power Screw Terminal For Optional CE, CB and UL Approval 3-Years Product Warranty

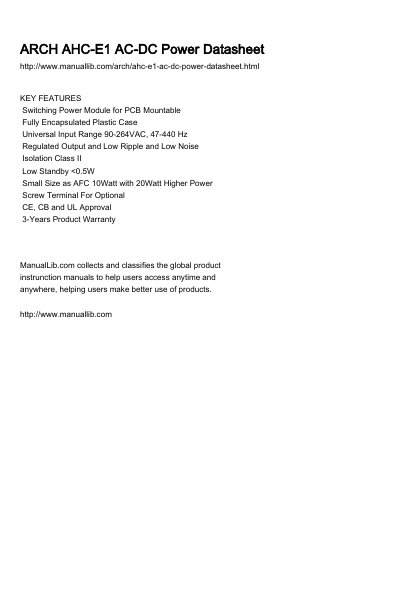

This document is a technical datasheet for the SIARCH Electronics Corp. AHC-E1 Series AC-DC Power Modules. It provides key features such as universal input range (90-264VAC), regulated output with low ripple and noise, and Class II isolation.
The datasheet details electrical specifications including maximum output wattage ranging from 4W to 5.5W for various voltage outputs (3.3V to 24V). It also lists performance metrics like efficiency, hold-up time, protection features (over power, over voltage, short circuit), and environmental operating conditions.
| Input Frequency | 47-440 Hz |
|---|---|
| Output Voltage Options | 3.3V, 5V, 12V, 15V, 24V |
| Dimensions | 2.0 x 1.0 x 0.597 Inches (50.8 x 25.4 x 15.16 mm) |
| Operating Temperature | -40°C...+70°C |
| Isolation Voltage | 3000V AC |
The module requires a minimum load of 0%.
SIARCH provides a 3-Years Product Warranty for this unit.
