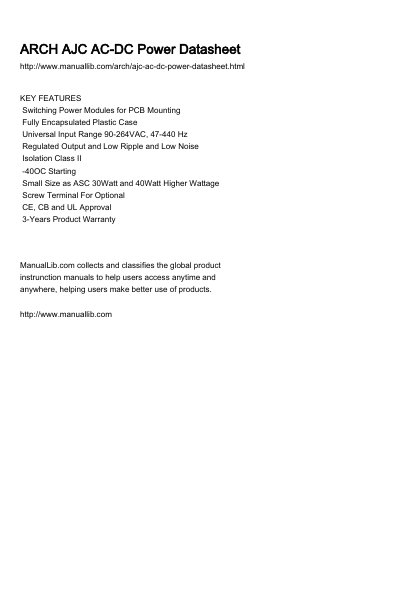

KEY FEATURES Switching Power Modules for PCB Mounting Fully Encapsulated Plastic Case Universal Input Range 90-264VAC, 47-440 Hz Regulated Output and Low Ripple and Low Noise Isolation Class II -40OC Starting Small Size as ASC 30Watt and 40Watt Higher Wattage Screw Terminal For Optional CE, CB and UL Approval 3-Years Product Warranty
This document is a technical datasheet for the ARCH Electronics Corp. JC Series AC-DC Power Modules (Model No. AJC). It details features such as universal input ranges, regulated outputs, and various protection mechanisms including over-current and short-circuit protection.
The datasheet provides specific electrical specifications for single output models ranging from 3.3V to 24V, dual output combinations like +5V/-12V, and triple output configurations. It also includes mechanical dimensions, pinout diagrams for PCB mounting options (screw terminals), derating curves based on ambient temperature, and environmental operating limits.
| Input Voltage Range (AC) | 90-264VAC, 47-440 Hz |
|---|---|
| Isolation Class | Class II |
| Operating Temperature Range | -40°C...+70°C (Case max +95°C) |
| Dimensions (LxWxH) | 89.0 x 63.5 x 25.0 mm |
| Switching Frequency | 132 kHz |
The product comes with a 3-year warranty.
Yes, screw terminals are available as an optional mounting feature.
