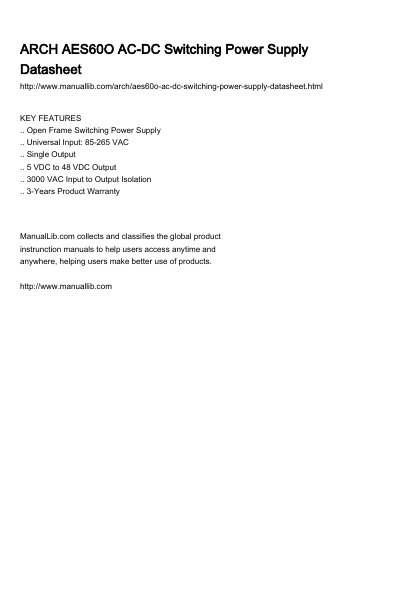

KEY FEATURES .. Open Frame Switching Power Supply .. Universal Input: 85-265 VAC .. Single Output .. 5 VDC to 48 VDC Output .. 3000 VAC Input to Output Isolation .. 3-Years Product Warranty
This document is a datasheet for the ARCH AES600 series of open frame AC-DC switching power supplies. It details key features such as universal input voltage (85-265 VAC), single output options ranging from 5V to 48V, and a 3-year warranty. The supply offers 3000 VAC input-to-output isolation and includes various protection features like over-power, over-voltage, and short-circuit protection.
| Input Voltage | 85-265 VAC or 100-370 VDC |
|---|---|
| Output Voltage | 5 VDC to 48 VDC |
| Input Current (Full load) | 2 Amax. (115 VAC) / 1 A max. (230 VAC) |
| Input-Output Isolation | 3000V |
| Operating Temperature | -40°C...+70°C |
| Dimensions | 103.9 x 52.1 x 25.4 mm |
| Weight | 150 g |
The input voltage range is 85-265 VAC or 100-370 VDC.
The input-to-output isolation is 3000 VAC.
