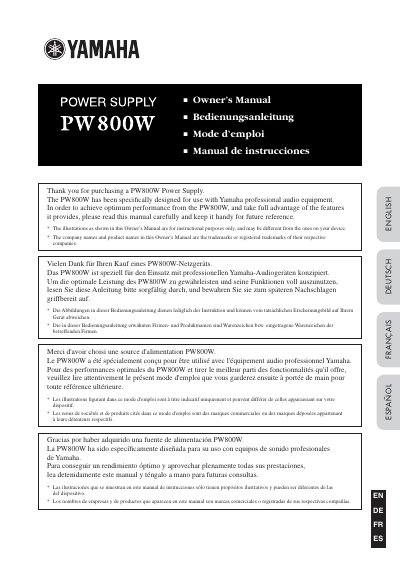

Yamaha PW800W Power Supply Owner's Manual
This document is the owner's manual for the Yamaha PW800W power supply unit. It provides instructions on safety precautions, regulatory compliance (FCC and UK standards), and general usage guidelines specific to this model.
The text includes multilingual introductory sections in English, German, French, and Spanish, followed by detailed explanations of graphical symbols used for warnings regarding electric shock and maintenance. It also outlines important notices concerning FCC regulations and proper wiring connections for the United Kingdom market.
Yamaha PW800W specifications
| Power consumption | 1000双 |
|---|---|
| Dimensions (W×H×D) | 480 mm × 142 mm × 384 mm |
| Weight | 1l0kg |
| Operating temperature | 10 °C – 35 °C |
| Storage temperature | -20 °C – 60 °C |
All Yamaha PW800W documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the PW800W Power Supply designed for?
The PW800W has been specifically designed for use with Yamaha professional audio equipment.
What should be done if the plug does not fit into the outlet?
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
How should the POWER switch be set when connecting the PW800W to equipment?
The POWER switch must be OFF before connecting the PW800W to any device; turn it ON only after the connection is made.
What cable is required to connect a second PW800W in parallel?
Use the optional PSL120 power‑connection cable to link the second PW800W to the primary unit.
