XLSEMI XL7056 2.1A 100KHz 100V Step-Down DC-DC Converter Datasheet

XLSEMI XL7056 2.1A 100KHz 100V Step-Down DC-DC Converter Datasheet

Datasheet 11 pages · 367 KB · ZH

XLSEMI XL7056 is a high-voltage step-down DC-DC converter. It operates from 8 V to 80 V input and provides an adjustable output from 1.25 V to 20 V, with up to 2.1 A at 5 V output and up to 1.2 A at 15 V output. It uses a fixed 100 kHz switching frequency and includes built-in current limit and output short-circuit protection.

The document covers pin functions, a block diagram, typical application circuits for 3.3 V, 5 V, and 15 V outputs, electrical characteristics, absolute maximum ratings, package dimensions, and ordering information. The converter is supplied in a TO263-7L package and is used in applications such as electric vehicle controller power supplies and communications equipment. This manual is written in Chinese.

Read online

XLSEMI XL7056 specifications

Input voltage range8 V to 80 V
Maximum duty cycle85%
Minimum dropout voltage2.0 V
Adjustable output voltage1.25 V to 20 V
Maximum output current at 5 V output2.1 A
Maximum output current at 15 V output1.2 A
Switching frequency100 kHz
Maximum output powerLess than 20 W
PackageTO263-7L
EfficiencyUp to 93%
Feedback reference voltage1.25 V
Quiescent current2.1 mA typical, 5.0 mA maximum
Oscillator frequency75 kHz minimum, 100 kHz typical, 135 kHz maximum
Switch current limit2.3 A
MOSFET on-resistance260 mΩ
Thermal resistance, junction to ambient30 °C/W
Operating junction temperature-40 °C to 125 °C
Storage temperature range-65 °C to 150 °C
Input undervoltage protection voltage6 V
Absolute maximum input voltage-0.3 V to 100 V

Source: XLSEMI XL7056 2.1A 100KHz 100V Step-Down DC-DC Converter Datasheet

All XLSEMI XL7056 documents by type

Questions answered in these manuals

What is the input voltage range of the XL7056?

The XL7056 operates from 8 V to 80 V.

From: XLSEMI XL7056 2.1A 100KHz 100V Step-Down DC-DC Converter Datasheet

What is the maximum output current at 5 V output?

Up to 2.1 A.

From: XLSEMI XL7056 2.1A 100KHz 100V Step-Down DC-DC Converter Datasheet

What is the maximum output current of the XL7056?

The device can drive a 2.1A load when the output voltage is set to 5V.

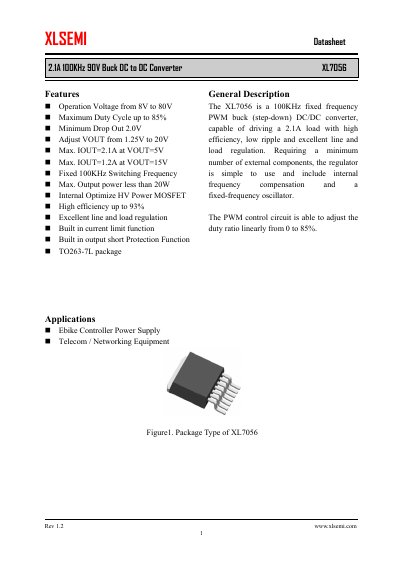

From: XLSEMI XL7056 Buck DC to DC Converter Datasheet

What is the switching frequency of the XL7056?

The converter operates with a fixed switching frequency of 100kHz.

From: XLSEMI XL7056 Buck DC to DC Converter Datasheet

What is the maximum input voltage for the XL7056?

The device supports a maximum input voltage of 100 V.

From: XLSEMI XL7056 Buck-Type DC-DC Converter Datasheet

What is the fixed switching frequency of the converter?

The XL7056 operates at a fixed switching frequency of 100 KHz.

From: XLSEMI XL7056 Buck-Type DC-DC Converter Datasheet
