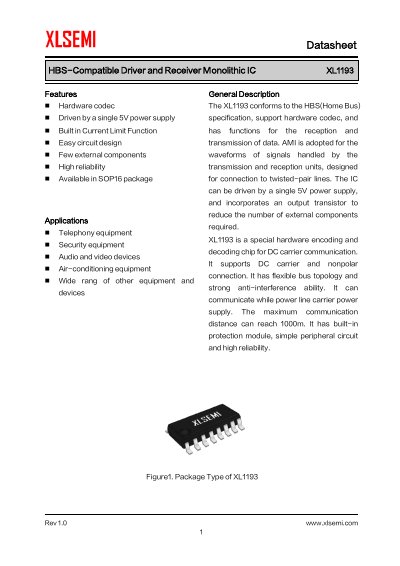

XLSEMI XL1193 HBS-Compatible Driver and Receiver Monolithic IC Datasheet
The XLSEMI XL1193 is a monolithic integrated circuit designed for HBS (Home Bus) compatible driver and receiver applications. It incorporates a hardware codec and is driven by a single 5V power supply, requiring few external components. The device supports DC carrier and non-polar connections with a maximum communication distance of 1000m and includes built-in protection modules for high reliability.
Read onlineXLSEMI XL1193 specifications
| Operating power supply voltage | 4.5 ~ 5.5 V |
|---|---|
| Power Dissipation | 450 mW |
| Operating Junction Temperature | -40 ~ 125 ℃ |
| Maximum communication distance | 1000m |
| Power supply current (Typical) | 9 mA |
| Transmission output voltage | 3.8 ~ 4.6 V |
| Input impedance | 25 ~ 46 KΩ |
| Package Type | SOP16 |
Source: XLSEMI XL1193 HBS-Compatible Driver and Receiver Monolithic IC Datasheet
All XLSEMI XL1193 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum communication distance for the XL1193?
The maximum communication distance can reach 1000m.
From: XLSEMI XL1193 HBS-Compatible Driver and Receiver Monolithic IC Datasheet
Does the XL1193 require multiple power supplies?
No, the IC can be driven by a single 5V power supply.
From: XLSEMI XL1193 HBS-Compatible Driver and Receiver Monolithic IC Datasheet
What is the main application of the XL1193?
It is designed for use in telephone equipment, security devices, audio-visual equipment, and air conditioning equipment.
From: XLSEMI XL1193 HBS-Compatible Driver and Receiver Monolithic IC Datasheet
Does the XL1193 support hardware encoding and decoding?
Yes, it supports hardware encoding and decoding compatible with HBS standards.
From: XLSEMI XL1193 HBS-Compatible Driver and Receiver Monolithic IC Datasheet
