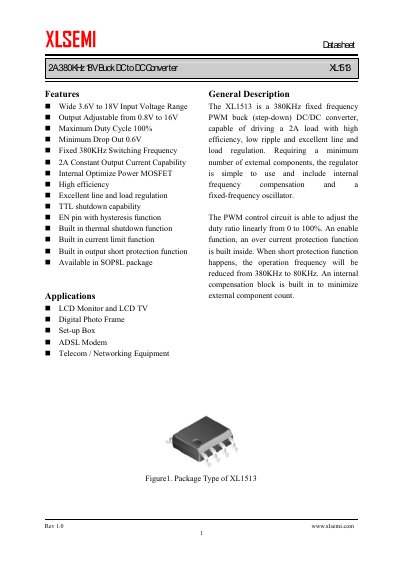

XLSEMI XL1513 Buck DC to DC Converter Datasheet
The XLSEMI XL1513 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter designed to drive a 2A load with high efficiency and low ripple. It features an internal power MOSFET, adjustable output voltage from 0.8V to 16V, and includes built-in protection functions such as thermal shutdown, current limit, and output short circuit protection.
Read onlineXLSEMI XL1513 specifications
| Input Voltage Range | 3.6V to 18V |
|---|---|
| Output Voltage Range | 0.8V to 16V |
| Switching Frequency | 380KHz |
| Constant Output Current Capability | 2A |
| Maximum Duty Cycle | 100% |
| Feedback Threshold Voltage | 0.8V |
| Operating Junction Temperature | -40 to 125 C |
All XLSEMI XL1513 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the switching frequency of the XL1513?
The device operates at a fixed switching frequency of 380KHz.
Does the XL1513 include internal protection features?
Yes, it includes built-in thermal shutdown, current limit, and output short circuit protection functions.
What is the switching frequency of the XL1513?
The XL1513 has a fixed switching frequency of 380KHz.
From: XLSEMI XL1513 380KHz 18V 2A Buck DC-DC Converter Datasheet
What is the maximum output current?
The maximum output current capability is 2A.
From: XLSEMI XL1513 380KHz 18V 2A Buck DC-DC Converter Datasheet
