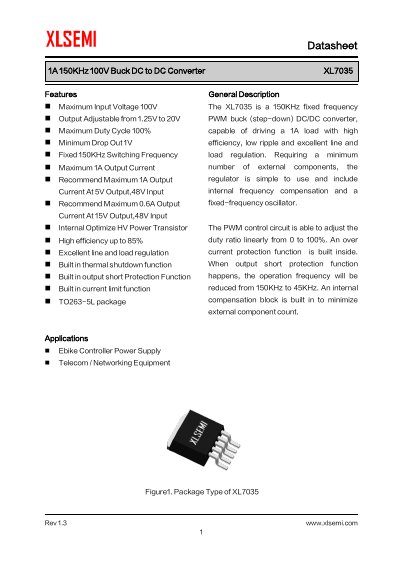

XLSEMI XL7035 1A 150KHz 100V Buck DC to DC Converter Datasheet

XLSEMI XL7035 1A 150KHz 100V Buck DC to DC Converter Datasheet

Datasheet 10 pages · 307 KB · EN

The XL7035 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter designed to drive a 1A load with high efficiency, low ripple, and excellent line and load regulation. It features an internal optimized HV power transistor and requires a minimum number of external components due to its internal frequency compensation and fixed-frequency oscillator.

Read online

XLSEMI XL7035 specifications

Maximum Input Voltage100V
Output Voltage Range1.25V to 20V
Switching Frequency150KHz
Maximum Output Current1A
Maximum Efficiency85%
Package TypeTO263-5L

Source: XLSEMI XL7035 1A 150KHz 100V Buck DC to DC Converter Datasheet

All XLSEMI XL7035 documents by type

Questions answered in these manuals

What is the feedback threshold voltage?

The feedback threshold voltage is 1.25V.

From: XLSEMI XL7035 1A 150KHz 100V Buck DC to DC Converter Datasheet

What happens to the frequency during output short protection?

The operation frequency reduces from 150KHz to 45KHz.

From: XLSEMI XL7035 1A 150KHz 100V Buck DC to DC Converter Datasheet

What is the switching frequency of the XL7035?

The device operates at a fixed 150 KHz switching frequency.

From: XLSEMI XL7035 Buck-Step Down DC-DC Converter Datasheet

Is the output voltage adjustable?

Yes, the output voltage is adjustable from 1.25 V to 20V.
