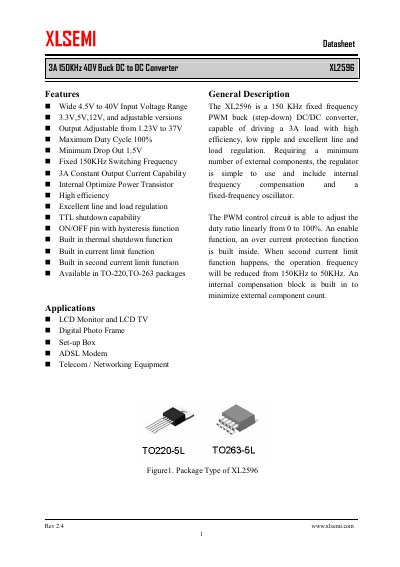

XLsemi XL2596 3A 150KHz 40V Buck DC to DC Converter Datasheet
The XL2596 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter designed to drive a 3A load with high efficiency, low ripple, and excellent line and load regulation. It requires a minimum number of external components and includes internal frequency compensation and a fixed-frequency oscillator.
Read onlineXLsemi XL2596 specifications
| Input Voltage Range | 4.5V to 40V |
|---|---|
| Output Voltage Range | 1.23V to 37V |
| Switching Frequency | 150KHz |
| Maximum Output Current | 3A |
| Operating Junction Temperature | -40 to 125 C |
| Feedback Threshold Voltage | 1.23V |
Source: XLsemi XL2596 3A 150KHz 40V Buck DC to DC Converter Datasheet
All XLsemi XL2596 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the switching frequency of the XL2596?
The XL2596 has a fixed switching frequency of 150KHz.
From: XLsemi XL2596 3A 150KHz 40V Buck DC to DC Converter Datasheet
What is the maximum output current capability?
The device is capable of driving a 3A load.
From: XLsemi XL2596 3A 150KHz 40V Buck DC to DC Converter Datasheet
What is the switching frequency of the XL2596?
The XL2596 has a fixed switching frequency of 150KHz.
From: XLsemi XL2596 3A 150KHz 40V Buck DC/DC Converter Datasheet
What is the maximum output current capability?
The device can drive a 3A load with high efficiency.
From: XLsemi XL2596 3A 150KHz 40V Buck DC/DC Converter Datasheet
