XLSEMI XL6006 DEMO Board Manual

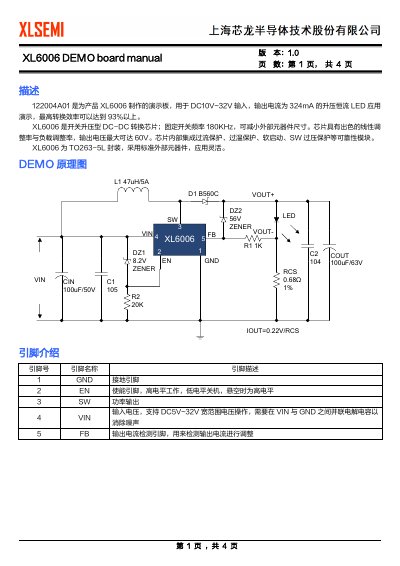

The document details the XLSEMI XL6006 DEMO board (Version 1.0), which is designed to demonstrate the capabilities of the XL6006 switching boost DC-DC converter chip. The board supports a wide input voltage range of DC5V to 32V and provides an output current of up to 324mA for LED string applications, achieving conversion efficiencies exceeding 93%. This manual is written in Chinese.
Read onlineXLSEMI XL6006 specifications
| Input Voltage Range | 5V to 32V |
|---|---|
| Maximum Output Voltage | 60V |
| Maximum Switch Current | 5A |
| Switching Frequency | 180KHz |
| Conversion Efficiency | >94% |
| Package Type | TO263-5L |
| Feedback Reference Voltage | 0.22V |
Source: XLSEMI XL6006 180KHz 60V 5A Boost LED Constant Current Driver Datasheet
All XLSEMI XL6006 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the XL6006 chip?
The chip supports DC5V~32V wide range voltage operation.
What is the maximum output voltage of the chip?
The output voltage can reach a maximum of 60V.
What is the maximum output voltage of this driver?
The device can boost the output voltage up to a maximum of 60V.
From: XLSEMI XL6006 180KHz 60V 5A Boost LED Constant Current Driver Datasheet
How many LEDs in series can be driven with a 24V input?
At an input voltage of 24V, it can drive 16 strings of 1W or 3W LEDs.
From: XLSEMI XL6006 180KHz 60V 5A Boost LED Constant Current Driver Datasheet
