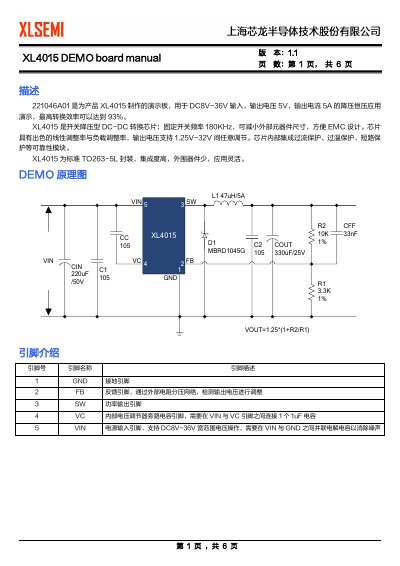

XLSEMI XL4015 DC-DC Converter Demo Board Manual
The XL4015 DEMO board is designed for DC-DC buck converter applications, featuring an input voltage range of 8V to 36V and a regulated 5V output capable of delivering up to 5A. The board utilizes the XL4015 switch-mode DC-DC converter chip, which operates at a fixed frequency of 180KHz to minimize external component size and facilitate EMC design. The chip includes built-in protection modules for over-current, over-temperature, and short-circuit conditions. This manual is written in Chinese.
Read onlineXLSEMI XL4015 specifications
| Input Voltage | DC 8V ~ 36V |
|---|---|
| Output Voltage | 5V (adjustable 1.25V~32V) |
| Output Current | 5A |
| Maximum Efficiency | 93% |
| Switching Frequency | 180KHz |
| Package | TO263-5L |
All XLSEMI XL4015 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the XL4015 demo board?
The demo board is designed for an output current of 5A.
What is the recommended input capacitor for the demo board?
The demo board uses a 220uF/50V electrolytic capacitor for the input.
What is the switching frequency of the XL4015?
The XL4015 has a fixed switching frequency of 180KHz.
What is the maximum output current capability?
The device can provide a maximum output current of 5A.
What is the switching frequency of the XL4015?
The XL4015 has a fixed switching frequency of 180KHz.
What is the maximum output current capability?
The device can provide a constant output current of 5A.
