XL7056 is an efficient and high voltage buck-type DC-DC converter with features such as a maximum input voltage of 100V, maximum duty cycle of 85%, minimum voltage difference of 2.0V, adjustable output voltage from 1.25V to 20V, and maximum output power less than 20W.

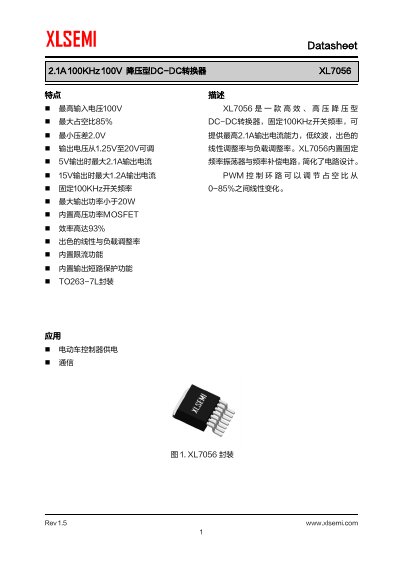

The XLSEMI XL7056 is a high-efficiency, high-voltage step-down DC-DC converter featuring a fixed 100KHz switching frequency. It includes an integrated high-voltage power MOSFET and offers adjustable output voltages ranging from 1.25V to 20V. The device supports maximum output currents of up to 2.1A at 5V outputs and is designed for applications such as electric vehicle controller power supplies. This manual is written in Chinese.
| Maximum Input Voltage | 100V |
|---|---|
| Maximum Output Current (5V) | 2.1A |
| Switching Frequency | 100KHz |
| Maximum Efficiency | 93% |
| Package Type | TO263 -7L |
The device supports a maximum input voltage of 100 V.
The XL7056 operates at a fixed switching frequency of 100 KHz.
The converter provides a maximum output current of 2.1 A at 5 V.
