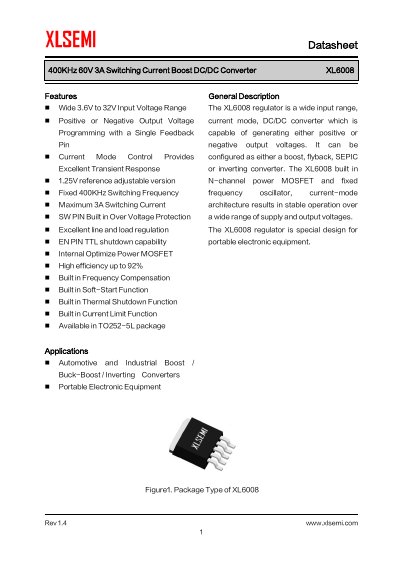

XLSEMI XL6008 DC/DC Converter Datasheet
The XL6008 is a wide input range, current mode, DC/DC converter capable of generating either positive or negative output voltages. It can be configured as a boost, flyback, SEPIC, or inverting converter. The device features a built-in N-channel power MOSFET and fixed frequency oscillator for stable operation.
Read onlineXLSEMI XL6008 specifications
| Input Voltage Range | 3.6V to 32V |
|---|---|
| Switching Frequency | 400KHz |
| Maximum Switching Current | 3A |
| Feedback Voltage | 1.25V |
| Package Type | TO252-5L |
All XLSEMI XL6008 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the switching frequency of the XL6008?
The device operates with a fixed switching frequency of 400KHz.
Can the XL6008 generate negative output voltages?
Yes, it is capable of generating either positive or negative output voltages.
What configurations can the XL6008 be set up as?
It can be configured as a Boost, Flyback, SEPIC, or Inverting converter.
What is the operating input voltage range?
The device supports a wide input voltage range from 3.6V to 32V.
What are the typical applications for the XL6008?
The XL6008 is designed for automotive and industrial converters as well as portable electronic devices.
From: XLSEMI XL6008 400KHz 60V 3A Switch Current Boost/Buck Type DC-DC Converter Datasheet
What is the maximum efficiency of the XL6008?
The maximum efficiency of the XL6008 is up to 92%.
From: XLSEMI XL6008 400KHz 60V 3A Switch Current Boost/Buck Type DC-DC Converter Datasheet
