XL6006 is a boost constant current LED driver with excellent linear and load regulation, which can drive 1W/3W/5W LED lights. XL6006 has a built-in fixed frequency oscillator and frequency compensation circuit, simplifying circuit design.

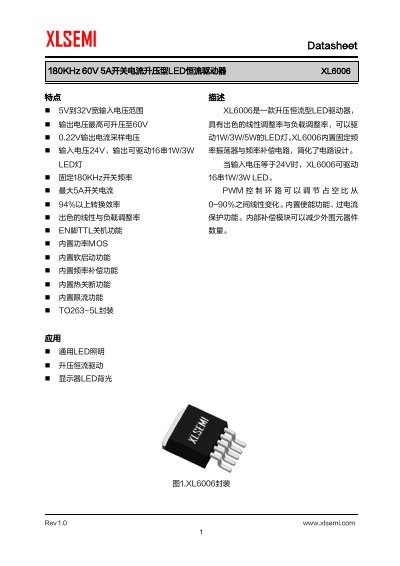

The XLSEMI XL6006 is a boost constant current LED driver designed for general LED lighting, boost constant current driving, and display LED backlight applications. It features a wide input voltage range of 5V to 32V and can boost the output voltage up to 60V. The device supports a maximum switch current of 5A and offers a conversion efficiency of over 94%. This manual is written in Chinese.
| Input Voltage Range | 5V to 32V |
|---|---|
| Maximum Output Voltage | 60V |
| Maximum Switch Current | 5A |
| Switching Frequency | 180KHz |
| Conversion Efficiency | >94% |
| Package Type | TO263-5L |
| Feedback Reference Voltage | 0.22V |
The device can boost the output voltage up to a maximum of 60V.
At an input voltage of 24V, it can drive 16 strings of 1W or 3W LEDs.
The internal oscillator operates at a fixed frequency of 180KHz.
