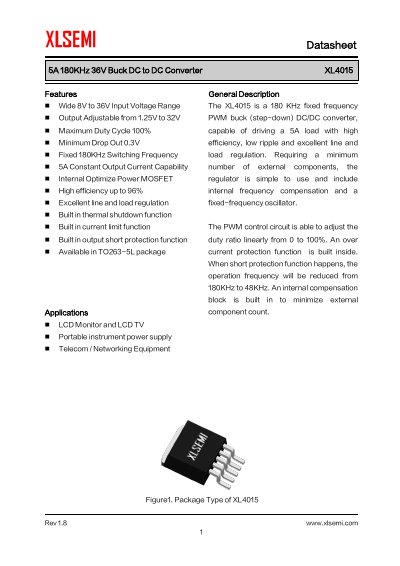

The XL4015 is a 180 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.
The XL4015 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter capable of driving a 5A load with high efficiency and low ripple. It requires a minimum number of external components and includes internal frequency compensation and a fixed-frequency oscillator. The device features a wide input voltage range from 8V to 36V and an adjustable output voltage from 1.25V to 32V.
| Input Voltage Range | 8V to 36V |
|---|---|
| Output Voltage Range | 1.25V to 32V |
| Switching Frequency | 180KHz |
| Maximum Output Current | 5A |
| Maximum Duty Cycle | 100% |
| Efficiency | up to 96% |
| Feedback Threshold Voltage | 1.25V |
| Package Type | TO263-5L |
The XL4015 has a fixed switching frequency of 180KHz.
The device can provide a constant output current of 5A.
The converter operates with an input voltage range from 8V to 36V.
Yes, it includes a built-in thermal shutdown function.
