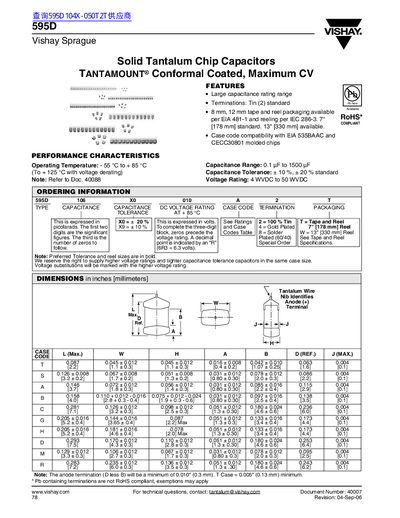

This document describes the features and performance characteristics of Vishay Sprague Solid Tantalum Chip Capacitors TANTAMOUNT® Conformal Coated, including a large capacitance rating range, various packaging options, voltage rating, and operating temperature range.
The 595D series are solid tantalum chip capacitors offered by Vishay Sprague with TANTAMOUNT® conformal coating. They cover a wide capacitance range from 0.1 µF to 1500 µF and voltage ratings from 4 V to 50 V, available in standard ±10 % or ±20 % tolerance.
The datasheet provides detailed ratings, case‑code compatibility, packaging options (8 mm and 12 mm tape‑and‑reel), operating temperature limits (‑55 °C to +85 °C, up to +125 °C with derating), and typical impedance curves for various case types.
| Capacitance range | 0.1 µF to 1500 µF |
|---|---|
| Voltage rating | 4 V to 50 V |
| Capacitance tolerance | ±10 % (standard) or ±20 % (standard) |
| Termination type | Tin (2) standard |
| Packaging | 8 mm and 12 mm tape‑and‑reel (EIA 481‑1) |
| Operating temperature | ‑55 °C to +85 °C (‑55 °C to +125 °C with voltage derating) |
The 595D series covers capacitance values from 0.1 µF up to 1500 µF.
Voltage ratings are available from 4 V up to 50 V.
They are supplied in 8 mm and 12 mm tape‑and‑reel formats according to EIA 481‑1.
The devices operate from –55 °C to +85 °C, and up to +125 °C when voltage‑derated.
