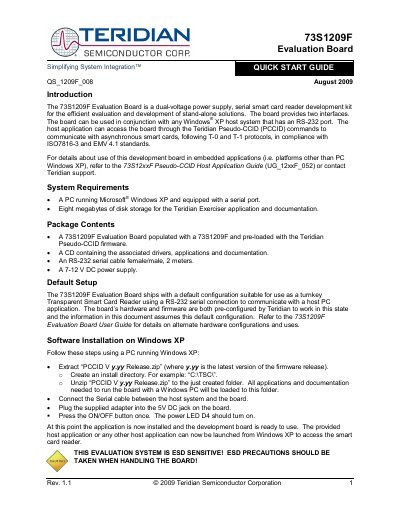

Teridian 73S1209F Evaluation Board Quick Start Guide
The Teridian 73S1209F Evaluation Board is a dual‑voltage power‑supply and serial smart‑card reader development kit. It ships with the board pre‑loaded with firmware, a CD of drivers and applications, an RS‑232 cable and a 7‑12 V DC power supply.
The Quick Start Guide walks you through installing the PCCID driver package on a Windows XP PC, connecting the serial cable, powering the board, and launching the provided TSCP‑CCID demo application to activate/deactivate smart cards and run test sequences. It also notes ESD precautions and points to further documentation for embedded integration.
Teridian 73S1209F specifications
| Power Supply Voltage | 7‑12 V DC |
|---|---|
| Interface | RS‑232 serial connection |
| Voltage Capability | Dual‑voltage |
| Operating System | Microsoft Windows XP |
| Disk Storage Requirement | 8 MB |
Source: Teridian 73S1209F Evaluation Board Quick Start Guide
All Teridian 73S1209F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the system requirements for the 73S1209F Evaluation Board?
A PC running Windows XP with a serial port and at least 8 MB of disk storage.
How many user I/O pins does the 73S1209F provide?
The device provides nine user I/O pins.
What types of memory are integrated in the 73S1209F?
It includes 32 KB of Flash program memory, 2 KB of XRAM, and 256 B of IRAM.
