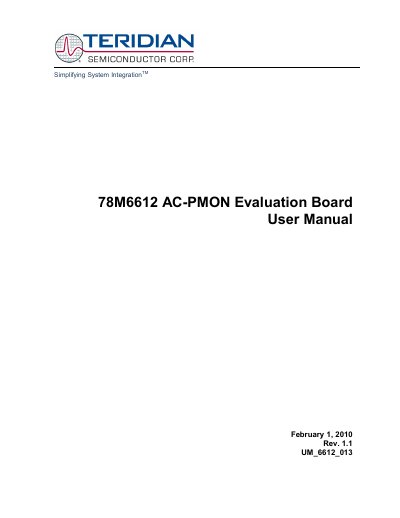

Teridian 78M6612 AC-PMON Evaluation Board User Manual
The 78M6612 AC‑PMON Evaluation Board is a single‑phase, dual‑outlet power and energy measurement platform that demonstrates the capabilities of the Teridian 78M6612 IC. It connects to a PC via USB and includes a Windows‑based graphical user interface for displaying voltage, current, power factor, energy usage and more.\n\nThis manual covers safety and ESD precautions, system requirements, driver installation, hardware connections, GUI operation, schematics, bill of materials, ordering information and contact details. It also provides firmware demo code features and instructions for using the command‑line interface.
Read onlineAll Teridian 78M6612 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the system requirements for the 78M6612 Evaluation Board?
A PC with at least a 1 GHz processor, 1 GB RAM, running Windows XP or Windows 2000, equipped with a USB port and a 1024 × 768 display.
From: Maxim Integrated 78M6612 Split-Phase Evaluation Board User Manual
How is the evaluation board powered?
It can be powered by the on‑board AC‑DC switcher or by an external +12 VDC supply; the board draws less than 100 mA from the external supply.
From: Maxim Integrated 78M6612 Split-Phase Evaluation Board User Manual
What are the system requirements for the 78M6612 AC‑PMON Evaluation Board?
A PC with at least a 1 GHz processor, 1 GB RAM, running Windows XP or Windows 2000, equipped with a USB port and a minimum display resolution of 1024 × 768.
