Key facts
- Brand
- Teridian
- Model
- 73S8009C
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-08
Start here

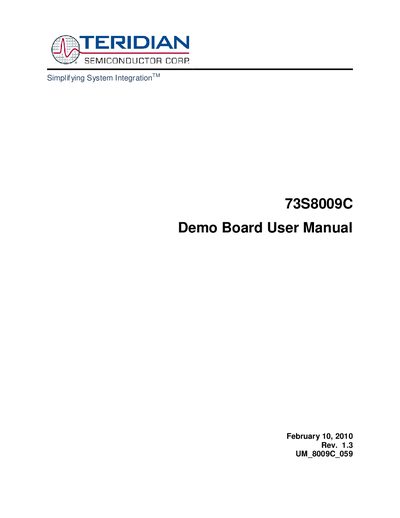

Teridian 73S8009C Demo Board User Manual
This manual introduces the Teridian 73S8009C Demo Board, a platform for evaluating the 73S8009C 32‑pin QFN Smart Card Interface IC. It lists the kit contents, safety and ESD precautions, recommended operating conditions, and detailed connector and pin descriptions.
The document also covers power‑supply configurations, jumper settings, ordering information, related documentation, and contact details for Teridian Semiconductor Corporation. Revision history and errata are included at the end.
Teridian 73S8009C specifications
| Input voltage range (VPC) | 2.7 V – 6.5 V |
|---|---|
| Smart‑card voltage options | 1.8 V, 3 V, 5 V |
| Maximum card current | 65 mA |
| Card over‑current detection limit | 150 mA max |
| Package type | 32‑pin QFN |
| Operating temperature range | Industrial (‑40 °C to +85 °C) |
Source: Teridian 73S8009C Data Sheet
All Teridian 73S8009C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What input voltage range does the 73S8009C accept?
It can operate from a single 2.7 V to 6.5 V supply, or from battery 4.0‑6.5 V and USB 4.4‑5.5 V sources.
How much current does the device draw when it is off?
In the off state the current consumption is less than 1 µA.
What safety precautions are required when handling the 73S8009C Demo Board?
Live voltages can create hazardous conditions, and the board is ESD‑sensitive, so extreme caution and proper ESD protection must be used.
What are the recommended supply voltage ranges for the 73S8009C Demo Board?
The board operates with a supply voltage (Vec) of 2.7 V to 6.5 VDC, Vpus of 4.4 V to 5.5 VDC, and Vpart of 4.0 V to 6.5 VDC.
