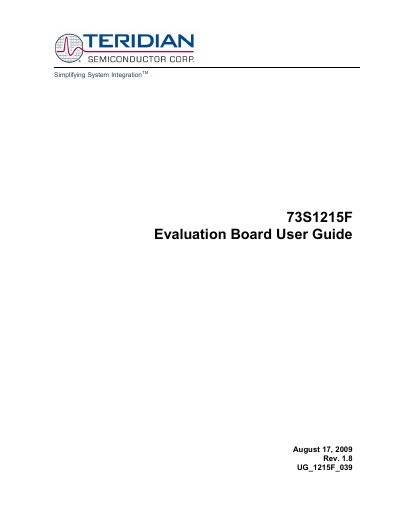

TERIDIAN 73S121F Manual
User Manual 35 pages · 1.6 MB · EN
This guide introduces the Teridian 73S1215F Evaluation Board, a development platform for the 73S1215F Smart Card Controller. It describes the kit contents, board features, recommended equipment, and basic setup procedures.
The document covers detailed hardware information such as jumper settings, schematics, USB and smart‑card interfaces, as well as ordering information, related documentation, and contact details for Teridian Semiconductor Corporation.
Teridian 73S1215F specifications
| CPU clock speed | up to 24 MHz |
|---|---|
| Flash memory | 64 kB |
| User XRAM | 2 kB |
| IRAM | 256 B |
| Operating voltage | 2.7 V to 3.6 V |
| USB interface speed | Full‑speed 12 Mbps |
| Number of user I/Os | 9 |
| Programmable current outputs | up to 4 |
| Analog input detection range | 1.0 V to 1.5 V |
All Teridian 73S1215F documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum CPU clock frequency of the 73S1215F?
The 73S1215F can run at a CPU clock of up to 24 MHz.
How much flash memory does the 73S1215F provide?
It includes 64 kB of flash program memory.
