Key facts
- Brand
- Teridian
- Model
- 71M6531
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-04-11
Start here

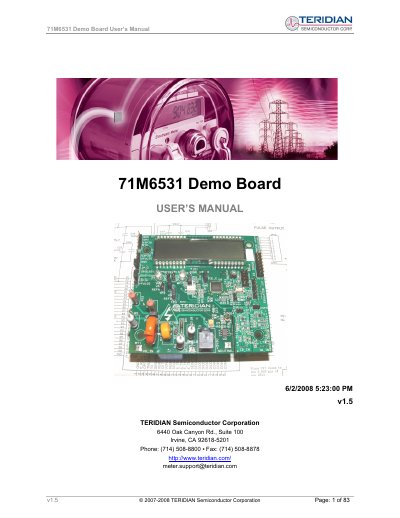

Teridian 71M6531 Demo Board User Manual
This manual describes the Teridian 71M6531 Demo Board, a single‑phase energy meter IC demonstration board. It includes safety and ESD warnings, a list of kit contents, connection diagrams, and step‑by‑step instructions for powering, testing, and using the board in CT or shunt configurations.\n\nDetailed hardware specifications are provided, covering dimensions, operating temperature, power supply requirements, measurement ranges, connector types, LCD display features, and full pin‑out information. Calibration procedures, firmware loading, and debugging via the companion Debug Board are also covered.
Read onlineTeridian 71M6531 specifications
| Wh accuracy | < 0.1% over 2000:1 current range |
|---|---|
| Typical power consumption | 39 mW @ 3.3 V |
| ADC resolution | 22‑bit delta‑sigma |
| Number of UARTs | Two |
Source: Teridian 71M6531D/F & 71M6532D/F Energy Meter IC Datasheet
All Teridian 71M6531 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the ADC resolution of the 71M6531D/F and 71M6532D/F?
Both devices use a 22‑bit delta‑sigma ADC.
From: Teridian 71M6531D/F & 71M6532D/F Energy Meter IC Datasheet
How many UART interfaces are provided?
The IC includes two UARTs for IR and AMR communication.
From: Teridian 71M6531D/F & 71M6532D/F Energy Meter IC Datasheet
