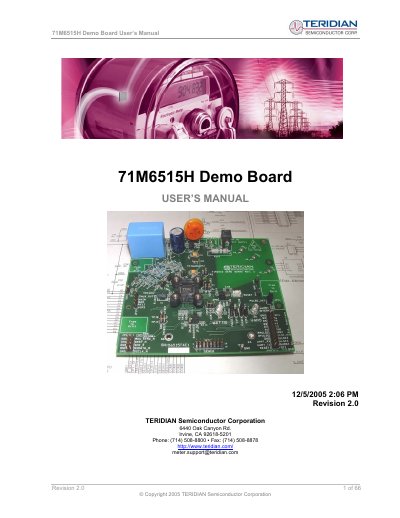

Teridian 71M6515H Demo Board User Manual
The Teridian 71M6515H demo board provides a complete evaluation platform for the 71M6515H AFE IC used in three‑phase power‑metering applications. It includes the demo board itself, a debug board, power supplies, a serial cable and a CD‑ROM with software and documentation. The board can be powered internally from phase A (when >220 V RMS) or from an external 5 VDC source, and it connects to a PC via an RS‑232 port.
The manual guides users through safety and ESD precautions, hardware description, power‑supply and serial‑connection setup, GUI operation, calibration procedures and pin‑level specifications. It also provides a bill of materials, schematic diagrams and detailed pin‑out tables for hardware integration.
Teridian 71M6515H specifications
| Analog power supply voltage | 3.3 V |
|---|---|
| Digital power supply voltage | 3.3 V |
| Battery backup pin | VBAT (requires external battery or super‑capacitor) |
All Teridian 71M6515H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What communication interface does the 71M6515H use with a host processor?
The IC communicates with the host processor via a UART interface that includes a programmable IRQZ interrupt.
How does the 71M6515H maintain time during a power outage?
It includes a battery‑backed real‑time clock that stays powered during a supply outage, with a typical backup current of 2 µA at 25 °C.
