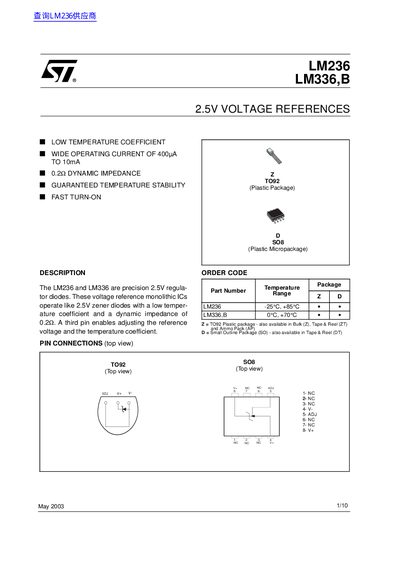

STMicroelectronics LM236/LM336 Voltage Reference Datasheet
Datasheet 10 pages · 898 KB · EN
This document provides technical specifications and application information for the LM236 and LM336, which are precision 2.5V regulator diodes operating like zener diodes. These monolithic ICs feature a low temperature coefficient and a dynamic impedance of 0.2Ω.
Read onlineSTMicroelectronics LM236 specifications
| Dynamic Impedance (typical) | 0.20 Ω |
|---|---|
| Operating Temperature Range | -25 °C to +85 °C (LM236), 0 °C to +70 °C (LM336B) |
| Package Types | SO‑8, TO‑92 |
All STMicroelectronics LM236 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dynamic impedance?
The guaranteed dynamic impedance is 0.2Ω.
From: STMicroelectronics LM236/LM336 Voltage Reference Datasheet
What is the operating free-air temperature range for the LM236?
The device operates in a free-air temperature range of -25 to +85 °C.
From: STMicroelectronics LM236/LM336 Voltage Reference Datasheet
What temperature range can the LM236 operate in?
The LM236 can operate from –25 °C up to +85 °C.
