Key facts
- Brand
- SONY
- Model
- BDP-S360
- Category
- Video Player
- Industry
- Electronics
- Documents
- 4
- Languages
- EN · ZH
- Last added
- 2026-10-06
Start here

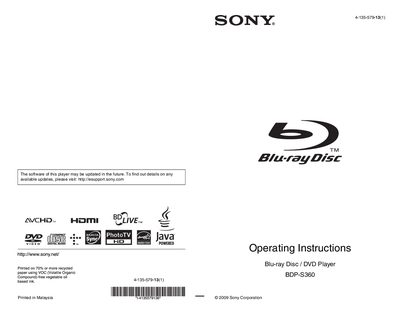

Sony BDP‑S360 Blu-ray Disc / DVD Player Operating Instructions
This manual provides safety warnings and precautions for the BDP‑S360, including fire‑ and shock‑risk prevention, proper handling of discs, and guidelines for placement and ventilation. It also explains how to connect the player to a TV, HDMI, component video, audio/video jacks, an AV amplifier, and a network, as well as how to use the remote and front‑panel controls.
Detailed sections describe playback of Blu‑ray, DVD, CD and MP3 files, picture and sound adjustments, network updates, system and video settings, and a troubleshooting guide with self‑diagnosis functions. The specifications page lists laser type, input/output connectors, power requirements, dimensions, and environmental limits.
SONY BDP-S360 specifications
| Laser type | Semiconductor laser |
|---|---|
| Digital optical output level | -18 dBm (wavelength 660 nm) |
| HDMI output | HDMI 19‑pin standard connector |
| Power requirements (US/Canada) | 120 V AC, 60 Hz |
| Power requirements (other regions) | 110‑240 V AC, 50/60 Hz |
| Power consumption | 22 W |
| Dimensions (approx.) | 430 mm × 216 mm × 56 mm |
| Mass (approx.) | 2.1 kg |
| Operating temperature range | 5 °C to 35 °C |
| Operating humidity range | 25 % to 80 % |
| LAN (Ethernet) interface | 100BASE‑TX |
Source: Sony BDP‑S360 Blu-ray Disc / DVD Player Operating Instructions
All SONY BDP-S360 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply should I use for the BDP‑S360?
Use a 120 V AC, 60 Hz supply in the U.S. and Canada, or a 110‑240 V AC, 50/60 Hz supply in other regions.
From: Sony BDP‑S360 Blu-ray Disc / DVD Player Operating Instructions
Can I connect the player to a network?
Yes, the player can be connected via a wired 100BASE‑TX Ethernet port or through a wireless LAN router.
From: Sony BDP‑S360 Blu-ray Disc / DVD Player Operating Instructions
What safety precautions should I follow when installing the BDP‑S360?
Do not expose the player to rain or moisture, keep it away from liquids, ensure proper ventilation, and have only qualified service personnel perform repairs.
How do I update the player’s software?
Visit http://esupport.sony.com to check for and download available software updates.
Can I use cleaning discs or disc/lens cleaners with this player?
No. Using cleaning discs or disc/lens cleaners may cause the player to malfunction.
From: Sony BDP-S360/S363 Blu-ray Disc DVD Player Operating Instructions Manual
Are there any restrictions on placing the player near magnets or heat sources?
Yes. Keep the player away from strong magnets, microwave ovens, loudspeakers, and any heat sources such as sunlight or hot air ducts.
From: Sony BDP-S360/S363 Blu-ray Disc DVD Player Operating Instructions Manual
