SINCAL Heating is an effective tool for planning large-scale supply networks. The simulation program can quickly and easily determine steady-state flow relationships in any size mesh-shaped supply network. Different technical and operating variations can be simulated. The calculation is only applicable to the same substance (a set of material values). It is not possible to calculate supply lines with different substances at the same time.

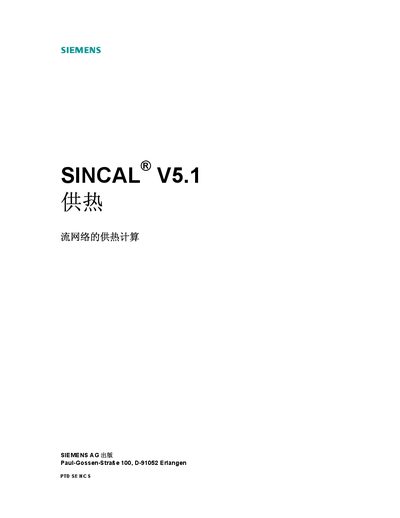

This manual explains how to use Siemens SINCAL V5.1 for heating network calculations. It describes the required input data, component models, and the mathematical methods employed by the program.
The document includes chapters on heating input data, component definitions, mathematical models, calculation methods, cross‑section procedures, variable ordering, and operation instructions, as listed in the table of contents. This manual is written in Japanese.
